| Article number: | 25.028 |
| Availability: | In stock |
| Processing time: | 5-7 working days Austria / EU: +3 working days |
Product Safety Regulation (GPSR) & Importer / EU Responsible Party: Kilic Feintechnik GmbH, Heidenfelder Str. 1, D-97525 Schwebheim, Germany, www.mak.ag

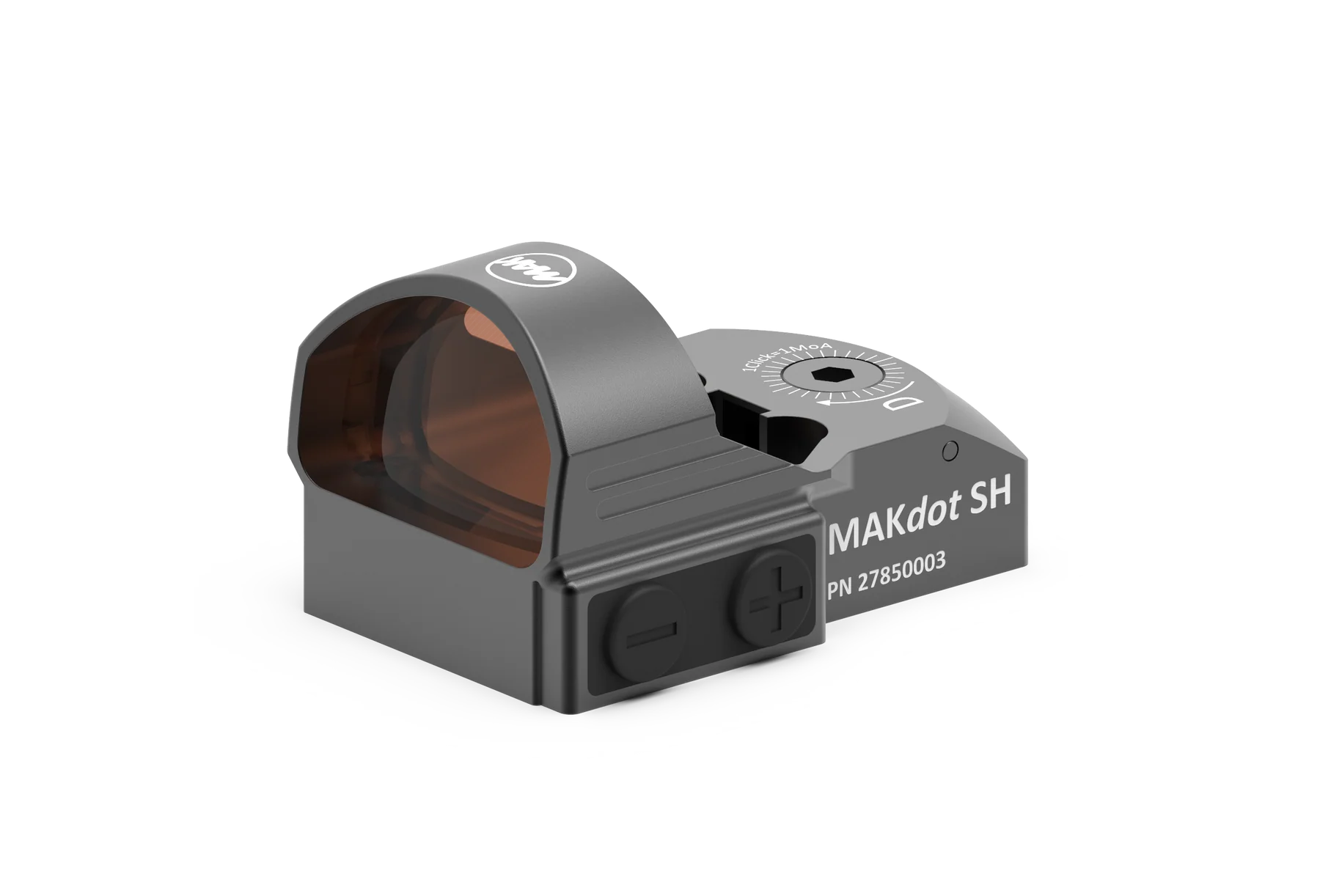

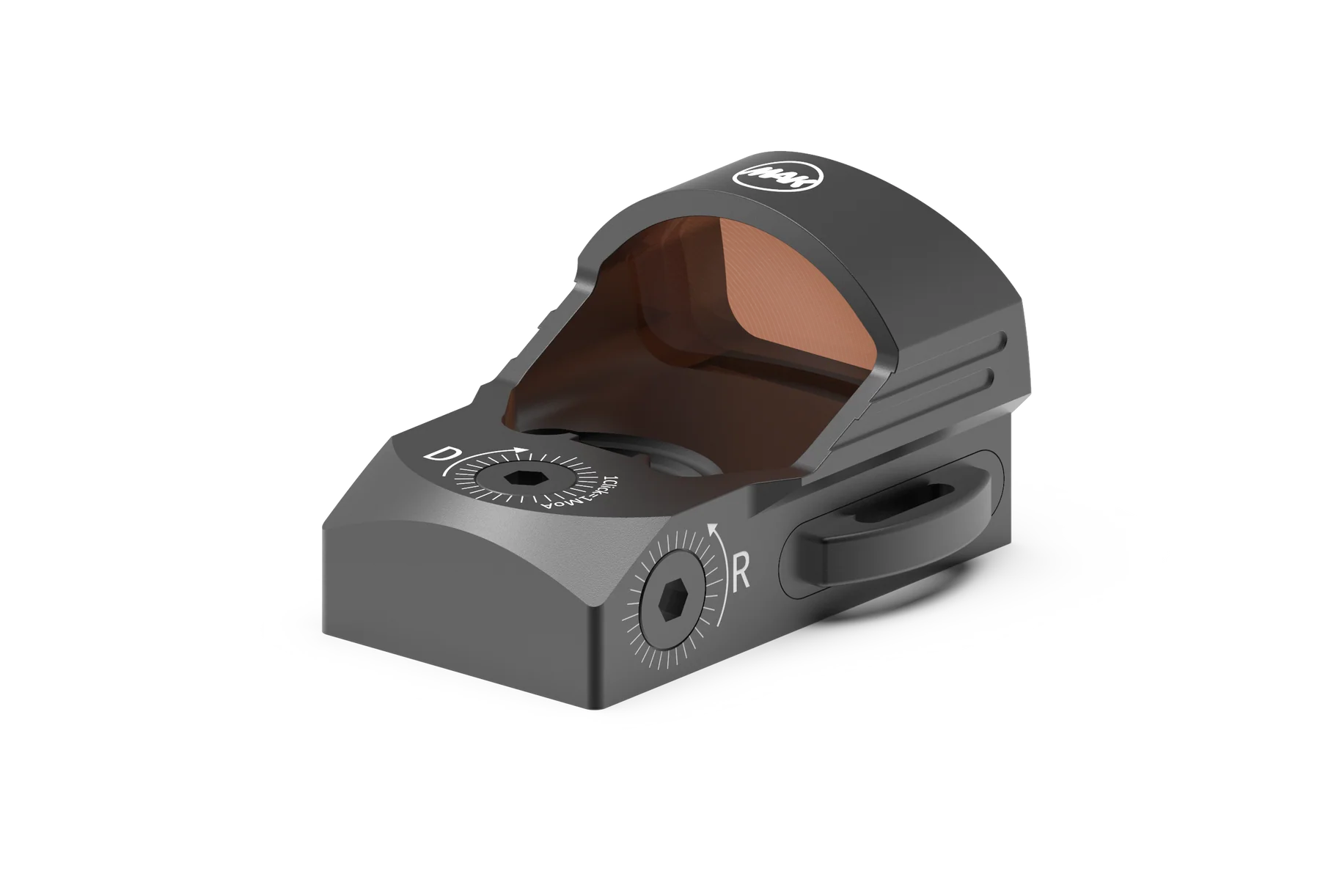

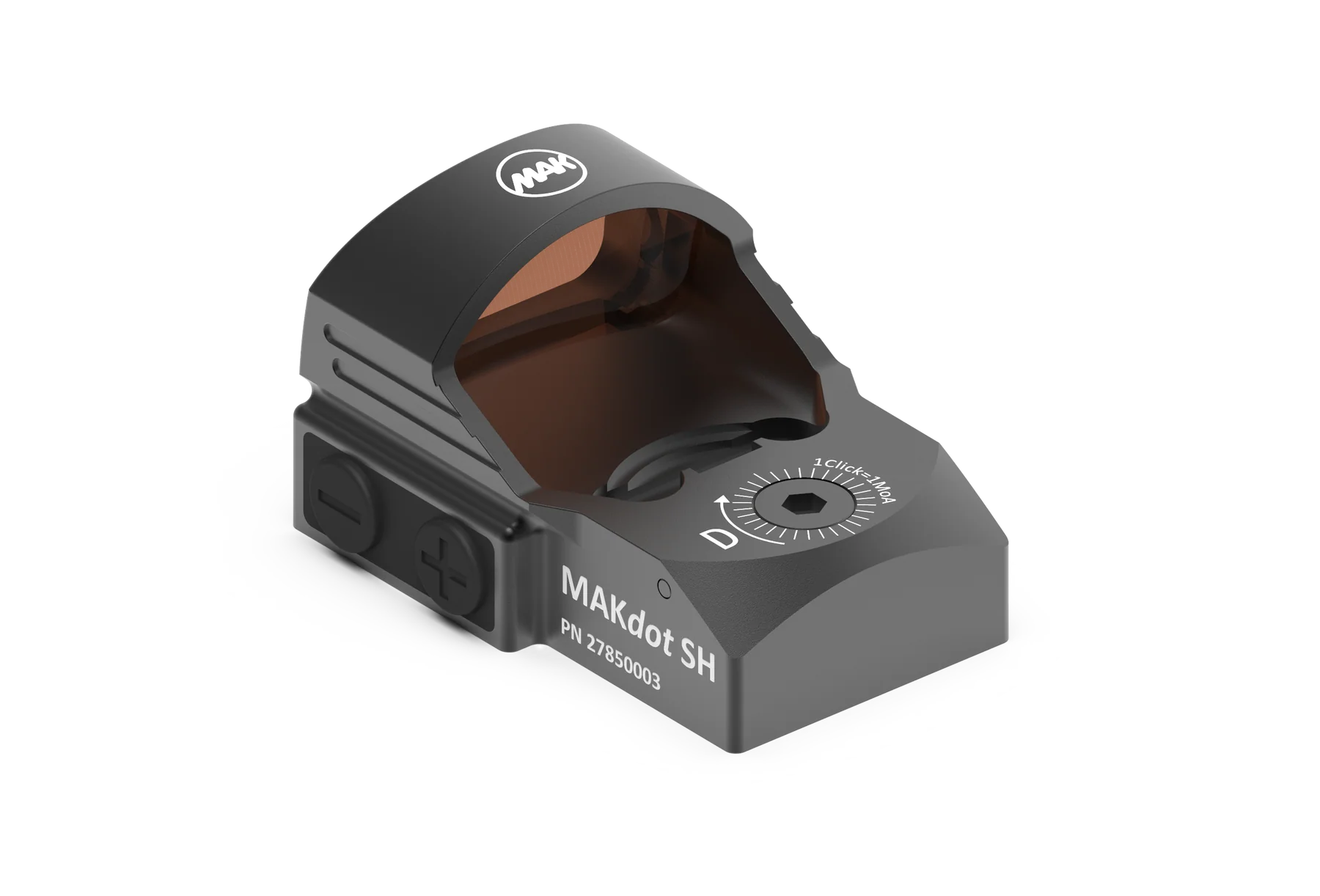

The MAKdot SH reflex sight was developed for particularly fast and precise target acquisition and is suitable for numerous weapon platforms – from AR systems to shotguns and handguns.
Thanks to its unlimited eye relief, the reflex sight allows for intuitive and rapid target acquisition. The 3.5 MOA red dot reticle ensures precise target acquisition in varying lighting conditions.
The robust housing made of 6063 aluminum offers high resistance and is shockproof up to 1500 G. Additionally, the visor is waterproof up to 1 meter for 10 minutes .
To extend battery life, the MAKdot SH features an automatic shut-off function after 4 hours of inactivity. The side-mounted battery change allows for quick replacement of the CR2032 battery without removing the visor.
Highlights:
unlimited interpupillary distance
3.5 MOA Red Dot
rapid target acquisition
waterproof up to 1 m
impact resistant up to 1500 G
automatic shutdown
Side battery replacement
compact design
Technical data
Magnification: 1x
Reticle: 3.5 MOA Red Dot
Window height: 17 mm
Window width: 27 mm
Light transmission: 80%
Click adjustment: 1 MOA per click
Battery: CR2032
Assembly footprint: Docter / Noblex
Material: 6063 Aluminum
Operating temperature: -30 °C to +70 °C
Storage temperature: -35 °C to +75 °C
Dimensions: 48 × 36 × 28.8 mm
Scope of delivery:
MAKdot SH Premium red dot sight
Rubber protective cover
CR2032 battery
User manual
Safety instructions: Use only with compatible systems. Before installation, ensure the weapon is unloaded and on safe.
