| Article number: | PAS TC68 |
| Availability: | In stock |
| Delivery time: | 5-7 working days Austria / EU: +3 working days |

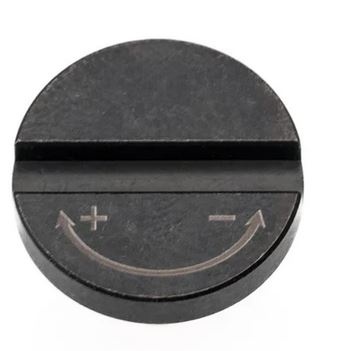

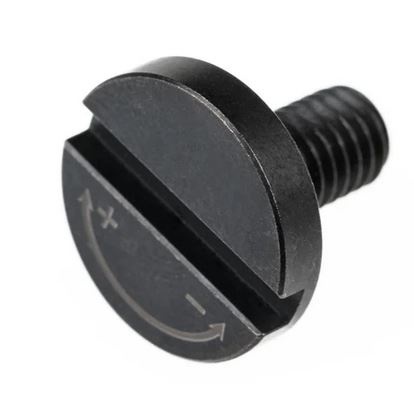

The Power Adjuster Screw allows you to continuously adjust the power of your Umarex T4E TC 68 – from the standard version of 7.5 J up to 55 joules*. The adjustment is easily done from the outside via the regulator cover , without disassembling the marker or requiring any additional tools.
Compatible with all TC68 variants (7.5 J, 16 J, 40 J), the power adjustment screw offers full flexibility. The included rubber cover reliably protects against dust and dirt and ensures the original design of the RAM is preserved.
Advantages of the Power Adjuster Screw
Legal Notice: In Germany, over-the-counter markers are legally permitted to have a maximum energy of 7.5 joules . Please observe the applicable regulations. This kit is intended for legal use abroad or only at approved shooting ranges.

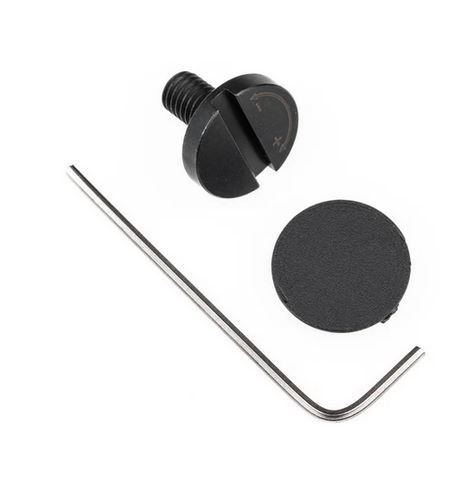

Scope of delivery
Technical data
Model: Power Adjuster Screw – Umarex T4E TC 68
Compatibility: TC 68 (7.5 J, 16 J, 40 J)
Material: steel, black coated

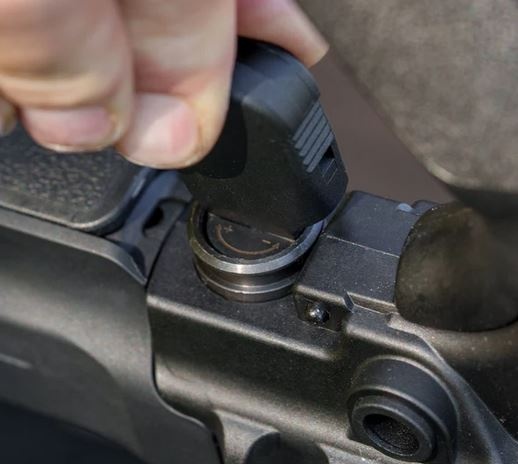

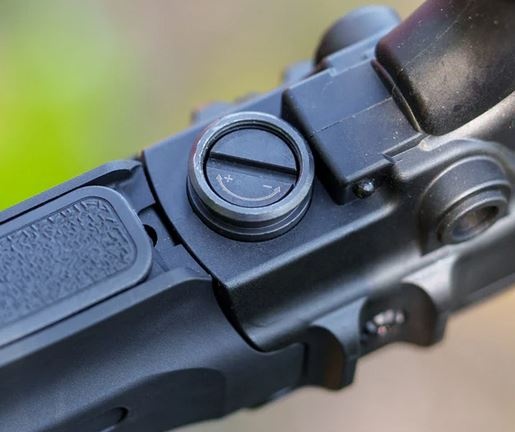

Installation: Directly above regulator cover, tool-free
Special features: Protective cover against dirt and dust
Power range: up to over 50 joules*
Here is the clear performance chart for the Umarex T4E TC 68 with Power Adjuster Screw (guide values; measured for the 7.5 Joule and 16 Joule variants with the 2x12g Co2 adapter, internal temperature 23 °C, heavy .68 caliber ammunition and good seal fit):
| TC 68 initial version | Factory performance | Possible final power with Power Adjuster Screw* |
|---|---|---|
| 7.5 joules (“F” version) | 7.5 joules | 30 – 50 joules |
| 16 joules | 16 joules | 35 – 50 joules |
| 40 joules | 40 joules | 45 – 55 joules |
* Depends on cartridge temperature and gas pressure (CO₂ cools during firing), ammunition weight and fit, seal condition, manufacturing tolerances, and adjustment. Some setups achieve >50 J, others are lower.
Hints for realistic results
I already had another competing power adjustment screw on my TC 68 (16 joules), which was a headless Allen screw. It worked well, but I never achieved the advertised power and found the adjustment system to be rather mediocre.
This one is very similar to the original screw, it works exactly the same way, looks very similar, it's just a little longer which allows for more power. And according to my chronograph, it delivers on its promise, I reached 55 joules! That's easily 10 joules more than with the other one, and with the 2X12g adapter as well, I recommend it for all TC68 processors. It's inexpensive and very easy to install, no modifications required, just replace the original screw with this one, it takes 30 seconds.
